S71917ACD/P4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢S71917ACD/P4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對85mm×120mm×18mm S71917ACD/P4A軸承有什么疑問，請聯系我們獲取更多信息。
RS717940AZ軸承
RS717940AZ軸承
SKFS71917ACD/P4A軸承_進口軸承
| 角接觸球軸承, 精密, S .. ACD, sealed, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 85 | 120 | 18 | 43,6 | 45,5 | 1,93 | 9000 | - | 0,53 | S71917 ACD/P4A | - | |
推薦產品
我公司特價供應以下型號產品： NURT40軸承 100KV895軸承 1217軸承 56650軸承 6403軸承 CRH26VBUUR軸承 6309NKE軸承 BAM4216軸承 51268軸承 SD3160SG軸承 130KBD030軸承 4T-663/653軸承 127軸承 HR85KBE52X+L軸承
我公司特價供應以下型號產品： NURT40軸承 100KV895軸承 1217軸承 56650軸承 6403軸承 CRH26VBUUR軸承 6309NKE軸承 BAM4216軸承 51268軸承 SD3160SG軸承 130KBD030軸承 4T-663/653軸承 127軸承 HR85KBE52X+L軸承

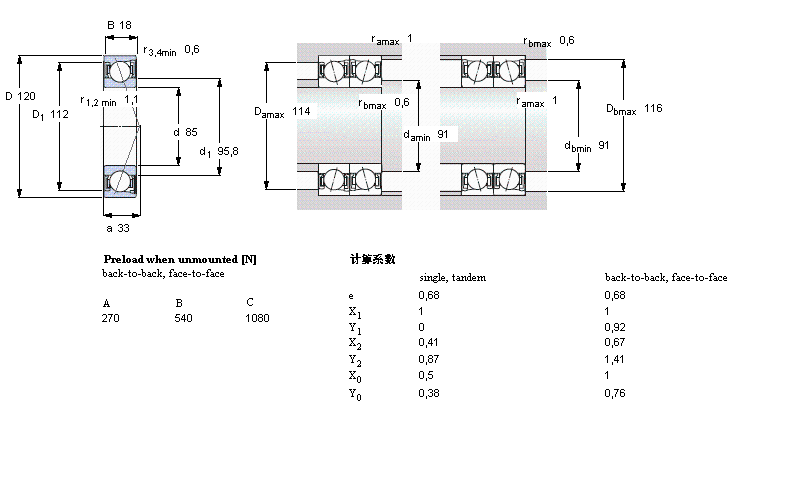

SKF軸承S71917ACD/P4A樣本圖
