FBSA210A/QFC軸承，我司有部分庫存，您可致電銷售人員免費咨詢FBSA210A/QFC軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對50mm×128mm×106mm FBSA210A/QFC軸承有什么疑問，請聯系我們獲取更多信息。
SKFFBSA210A/QFC軸承_進口軸承
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 128 | 106 | 75,795 | 292 | 10,8 | 3000 | 1500 | 9,3 | FBSA 210 A/ QFC | BSQU 250/1 TFT | |
推薦產品
我公司特價供應以下型號產品： 53306U軸承 22324RHRK+AHX..軸承 SG538軸承 6201ZZ軸承 231/500BK+AHX..軸承 NU204E軸承 NN4940K軸承 E-EE134102D/1..軸承
我公司特價供應以下型號產品： 53306U軸承 22324RHRK+AHX..軸承 SG538軸承 6201ZZ軸承 231/500BK+AHX..軸承 NU204E軸承 NN4940K軸承 E-EE134102D/1..軸承

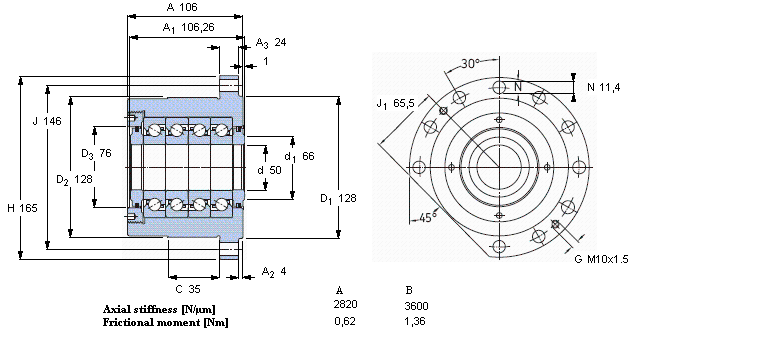

SKF軸承FBSA210A/QFC樣本圖
