C7019DB/P7軸承，我司有部分庫存，您可致電銷售人員免費咨詢C7019DB/P7軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對95mm×145mm×24mm C7019DB/P7軸承有什么疑問，請聯系我們獲取更多信息。
CRBC700150軸承 CRBC70070軸承 CRBC70045軸承 CRBC7013UU軸承 CRBC7013軸承
CRBC700150軸承 CRBC70070軸承 CRBC70045軸承 CRBC7013UU軸承 CRBC7013軸承
SKFC7019DB/P7軸承_進口軸承
| 角接觸球軸承, 精密, C .. DB, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 95 | 145 | 24 | 37,1 | 42,5 | 1,63 | 12000 | 18000 | 1,16 | C7019 DB/P7 | - | |
推薦產品
我公司特價供應以下型號產品： N244軸承 6217-2NK軸承 HM804842/10軸承 NF314軸承 NJ222E軸承 NJ430軸承 4T-JLM813049/..軸承 LRB242820軸承 120KV895軸承 TRI405930軸承 7213CDF軸承 NUP414軸承 RS404521A軸承
我公司特價供應以下型號產品： N244軸承 6217-2NK軸承 HM804842/10軸承 NF314軸承 NJ222E軸承 NJ430軸承 4T-JLM813049/..軸承 LRB242820軸承 120KV895軸承 TRI405930軸承 7213CDF軸承 NUP414軸承 RS404521A軸承

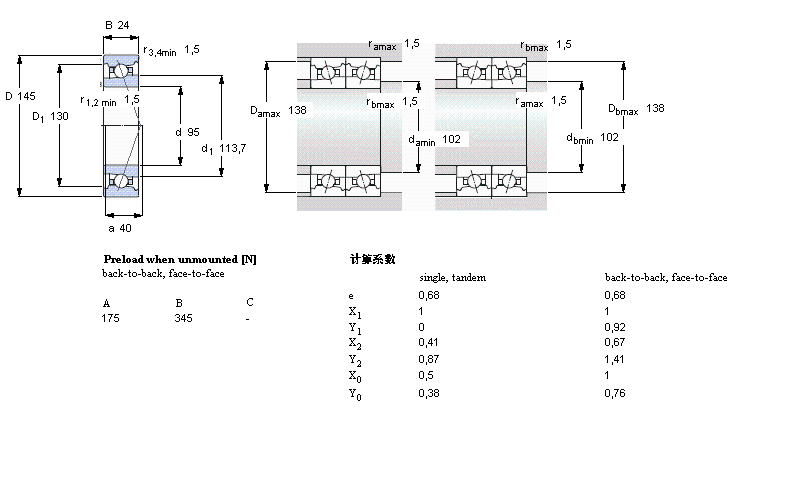

SKF軸承C7019DB/P7樣本圖
