BEAM050140-2Z軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM050140-2Z軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對50mm×140mm×54mm BEAM050140-2Z軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM050140-2Z軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 50 | 140 | 54 | 112 | 250 | 9,3 | 2800 | 4,70 | BEAM 050140-2Z | BEAM 50/140/Z 7P60 | |
推薦產品
我公司特價供應以下型號產品： L305649R/10軸承 E-CRO-13202軸承 H3028軸承 46T32322JR/14..軸承 7905CDB軸承 KTV101411EG軸承 23260EW33軸承 24164B軸承 H-25590/H-255..軸承 CR36軸承
我公司特價供應以下型號產品： L305649R/10軸承 E-CRO-13202軸承 H3028軸承 46T32322JR/14..軸承 7905CDB軸承 KTV101411EG軸承 23260EW33軸承 24164B軸承 H-25590/H-255..軸承 CR36軸承

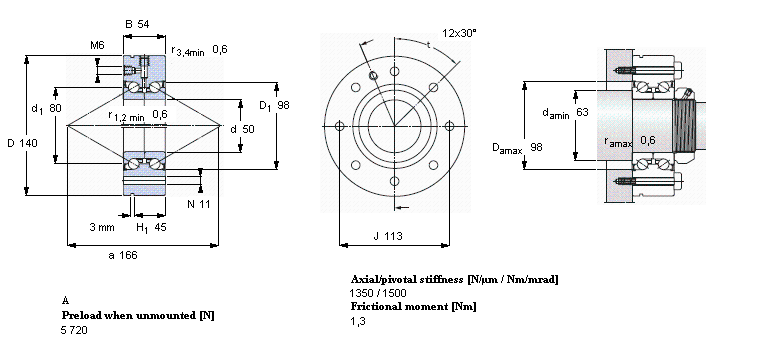

SKF軸承BEAM050140-2Z樣本圖
