71926CD/P4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71926CD/P4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對130mm×180mm×24mm 71926CD/P4A軸承有什么疑問，請聯(lián)系我們獲取更多信息。
07097/07196軸承 4T-07096/07196軸承 JM719149/13軸承 7196軸承 4T-07087/07196軸承 4T-07093/07196軸承 4T-07100S/07196軸承 SB223719軸承 4T-07079/07196軸承 07100/07196軸承
07097/07196軸承 4T-07096/07196軸承 JM719149/13軸承 7196軸承 4T-07087/07196軸承 4T-07093/07196軸承 4T-07100S/07196軸承 SB223719軸承 4T-07079/07196軸承 07100/07196軸承
SKF71926CD/P4A軸承_進口軸承
| 角接觸球軸承, 精密, CD, contact angle 15° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數(shù)據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態(tài) | 靜態(tài) | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 130 | 180 | 24 | 92,3 | 108 | 3,65 | 7000 | 11000 | 1,55 | 71926 CD/P4A | - | |
推薦產品
我公司特價供應以下型號產品： NJ1048軸承 6313NR軸承 RLM2225軸承 NJ408軸承 CF8RM軸承 SN208C軸承 E-4R8201軸承
我公司特價供應以下型號產品： NJ1048軸承 6313NR軸承 RLM2225軸承 NJ408軸承 CF8RM軸承 SN208C軸承 E-4R8201軸承

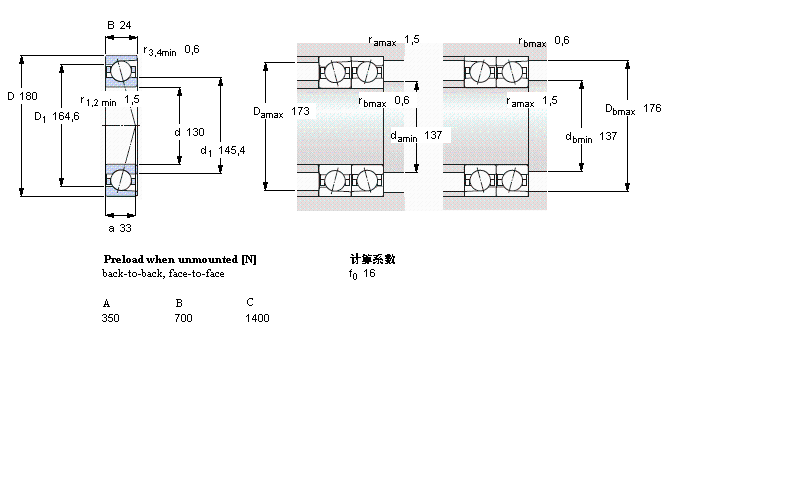

SKF軸承71926CD/P4A樣本圖
