71805CD/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71805CD/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對25mm×37mm×7mm 71805CD/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
36FC27180軸承 47T271816軸承 JM718110軸承 JM718149軸承 JM718149/10軸承 4T-JM718149/JM718110軸承
36FC27180軸承 47T271816軸承 JM718110軸承 JM718149軸承 JM718149/10軸承 4T-JM718149/JM718110軸承
SKF71805CD/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 25 | 37 | 7 | 4,16 | 3,2 | 0,137 | 45000 | 70000 | 0,019 | 71805 CD/HCP4A | SEA25 /NS 7CE1 | |
推薦產品
我公司特價供應以下型號產品： NU2217E軸承 32305XR軸承 864R/854軸承 22316RHR軸承 CF10VM軸承 IRT6040軸承 BO15軸承 HJ204軸承 6222NR軸承 CRY32VR軸承 562030M軸承 7902A5DF軸承 CRH44VBUUR軸承 NART10VUUR軸承
我公司特價供應以下型號產品： NU2217E軸承 32305XR軸承 864R/854軸承 22316RHR軸承 CF10VM軸承 IRT6040軸承 BO15軸承 HJ204軸承 6222NR軸承 CRY32VR軸承 562030M軸承 7902A5DF軸承 CRH44VBUUR軸承 NART10VUUR軸承

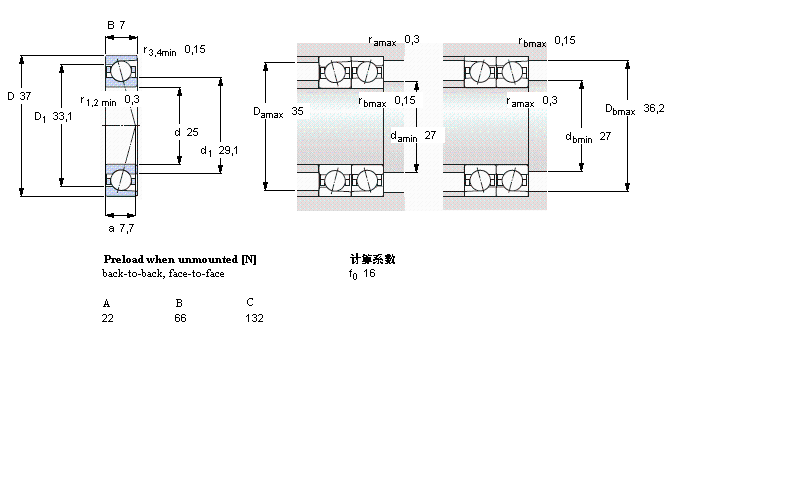

SKF軸承71805CD/HCP4A樣本圖
