7004ACD/P4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢7004ACD/P4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對20mm×42mm×12mm 7004ACD/P4A軸承有什么疑問，請聯系我們獲取更多信息。
7007DF軸承 7004ADB軸承 7005C軸承 7006CDF軸承 64700軸承 7001DT軸承 7002CDF軸承 7008CDF軸承 7000CDT軸承 7007DF軸承
7007DF軸承 7004ADB軸承 7005C軸承 7006CDF軸承 64700軸承 7001DT軸承 7002CDF軸承 7008CDF軸承 7000CDT軸承 7007DF軸承
SKF7004ACD/P4A軸承_進口軸承
| 角接觸球軸承, 精密, ACD, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 42 | 12 | 8,32 | 4,15 | 0,173 | 34000 | 50000 | 0,065 | 7004 ACD/P4A | - | |
推薦產品
我公司特價供應以下型號產品： E-HM265049D/H..軸承 6208LLH軸承 CF30-1B軸承 7209BDB軸承 SG532-0軸承 170TAC29D+L軸承 4T-33885/3382..軸承 CRBC50040軸承 N244軸承
我公司特價供應以下型號產品： E-HM265049D/H..軸承 6208LLH軸承 CF30-1B軸承 7209BDB軸承 SG532-0軸承 170TAC29D+L軸承 4T-33885/3382..軸承 CRBC50040軸承 N244軸承

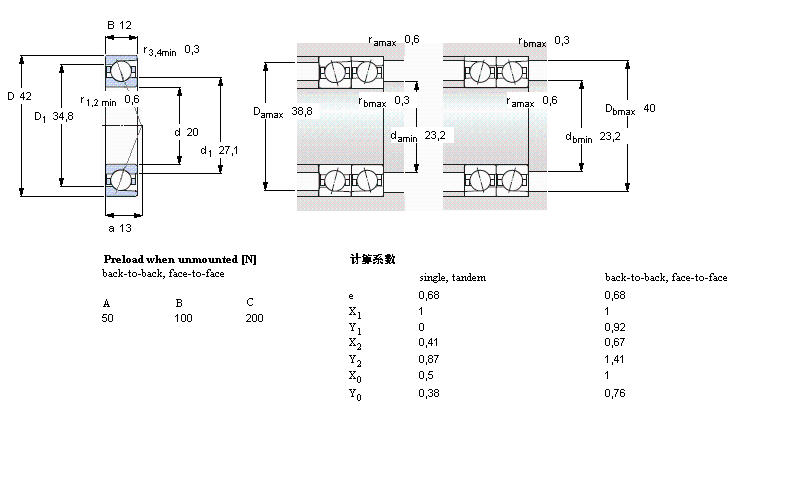

SKF軸承7004ACD/P4A樣本圖
